Optimized packet capture and record systems

Daqscribe recorder selection

Recorder
series
Form factor (style) Environmental grade
10GbE
cap/rec ports
25GbE
cap/rec ports
40GbE
cap/rec ports
100GbE
cap/rec ports
Max storage Max performance
DDR7000-Rx series 19" rackmount Industrial
16
6
4
2
1PB 160Gbps
RDR7000-R series 19" rackmount MIL-STD-810
16
6
4
2
180TB 160Gbps
DDR70-Mini series Miniature
footprint
Industrial
4
2
1
60TB 50Gbps
RDR70-Mini series Miniature
footprint
MIL-STD-810
4
2
1
60TB 50Gbps

DDR7000-R series recorders
download a brochure
request a quote
12TB
(74TBW)
25TB
(149TBW)
50TB
(298TBW)
120TB
(269TBW)
180TB
(403TBW)
1PB
(1740.8TBW)
cap/rec ports
DDR7000-R1-100G DDR7000-Rx series brochure low res
2 x 100GbE
DDR7000-R4-100G DDR7000-Rx series brochure low res
2 x 100GbE
DDR7000-R1-100G-2 DDR7000-Rx series brochure low res
2 x 100GbE
2 x 80GbE
DDR7000-R4-100G-2 DDR7000-Rx series brochure low res
2 x 100GbE
2 x 80GbE
DDR7000-R1-40G-2 DDR7000-Rx series brochure low res
2 x 40GbE
DDR7000-R4-40G-2 DDR7000-Rx series brochure low res
2 x 40GbE
DDR7000-R1-40G-4 DDR7000-Rx series brochure low res
4 x 40GbE
DDR7000-R4-40G-4 DDR7000-Rx series brochure low res
4 x 40GbE
DDR7000-R1-25G-4 DDR7000-Rx series brochure low res
4 x 25GbE
DDR7000-R4-25G-4 DDR7000-Rx series brochure low res
4 x 25GbE
DDR7000-R4-25G-6 DDR7000-Rx series brochure low res
38TB
(223TBW)
76TB
(448TBW)
153TB
(896TBW)
6 x 25GbE
DDR7000-R4-10G-8 DDR7000-Rx series brochure low res
8 x 10GbE
DDR7000-R4-10G-16 DDR7000-Rx series brochure low res
16 x 10GbE
DDR7000-R4-PB DDR7000-Rx series brochure low res
1 x 100GbE

RDR7000-R series recorders
download a datasheet
request a quote
12TB
(74TBW)
25TB
(149TBW)
50TB
(298TBW)
120TB
(269TBW)
180TB
(403TBW)
cap/rec ports
RDR7000-R-100G RDR7000-R series brochure low res
1 x 100GbE
RDR7000-R-100G-2 RDR7000-R series brochure low res
2 x 100GbE
RDR7000-R-40G-2 RDR7000-R series brochure low res
2 x 40GbE
RDR7000-R-40G-4 RDR7000-R series brochure low res
4 x 40GbE
RDR7000-R-25G-4 RDR7000-R series brochure low res
4 x 25GbE
RDR7000-R-25G-6 RDR7000-R series brochure low res
38TB
(223TBW)
76TB
(448TBW)
153TB
(896TBW)
6 x 25GbE
RDR7000-R-10G-8 RDR7000-R series brochure low res
8 x 10GbE
RDR7000-R-10G-16 RDR7000-R series brochure low res
16 x 10GbE

DDR70-Mini series recorders
download a brochure
request a quote
3TB
(19TBW)
6TB
(37TBW)
12TB
(75TBW)
25TB
(149TBW)
30TB
(67TBW)
60TB
(134TBW)
cap/rec ports
DDR70c-Mini-40G DDR70-Mini series brochure low res
1 x 40GbE
DDR70c-Mini-25G-2 DDR70-Mini series brochure low res
2 x 25GbE
DDR70c-Mini-10G-4 DDR70-Mini series brochure low res
4 x 10GbE
DDR70-Mini-10G-2 DDR70-Mini series brochure low res
2 x 10GbE

RDR70-Mini series recorders
download a datasheet
request a quote
3TB
(19TBW)
6TB
(37TBW)
12TB
(75TBW)
15TB
(34TBW)
25TB
(149TBW)
30TB
(67TBW)
60TB
(134TBW)
cap/rec ports
RDR70-Mini series brochure low res
1 x 40GbE
RDR70-Mini series brochure low res
2 x 25GbE
RDR70-Mini series brochure low res
4 x 10GbE
RDR70-Mini series brochure low res
2 x 10GbE

capture speed and record time chart

(with equivalent file-size estimates)

Traffic speed
Gbps
Data Speed
MBytes/sec
Data Speed
GBytes/sec
1 min.
GBytes
30 min.
TBytes
1 hour
TBytes
2 hours
TBytes
6 hours
TBytes
12 hours
TBytes
24 hours
TBytes
125
0.125
7.5
0.2
0.5
0.9
2.7
5.4
11
1,250
1.250
75.0
2.3
4.5
9.0
27.0
54.0
108
2,500
2.500
150.0
4.5
9.0
18.0
54.0
108.0
216
3,125
3.125
187.5
5.6
11.3
22.5
67.5
135.0
270
5,000
5.000
300.0
9.0
18.0
36.0
108.0
216.0
432
6,250
6.250
375.0
11.3
22.5
45.0
135.0
270.0
540
10,000
10.000
600.0
18.0
36.0
72.0
216.0
432.0
864
12,500
12.500
750.0
22.5
45.0
90.0
270.0
540.0
1,080
15,000
15.000
900.0
27.0
54.0
108.0
324.0
648.0
1,296
20,000
20.000
1,200.0
36.0
72.0
144.0
432.0
864.0
1,728
Fastest industrial rackmount network monitoring systems

DDR7000-Rx Ethernet recorders

DDR7000-R1 series recorders front panel
DDR7000-R1 series Ethernet recorders rear panel

DDR7000-R1 series highlights

  • 1U rackmount​
  • Up to 100Gbps total throughput​
  • 10GbE, 25GbE, 40GbE, and 100GbE-links​
  • Up to 180TB max storage (removable)​
  • STIG & AES256 encryption (optional)

DDR7000-R4 series highlights

  • 4U rackmount​
  • Up to 160Gbps total throughput​
  • 10GbE, 25GbE, 40GbE, and 100GbE-links​
  • Up to 1.6 Petabyte max storage​
  • STIG & AES256 encryption (optional)
  • Spare card slots
DDR7000-R4 series
DDR7000-R4 front panel
DDR7000-R4 rear panel
SWaP optimized Ethernet recorder series

DDR70x-Mini series Ethernet recorders

DDR70-Mini-10G-2 Ethernet recorder
DDR70-Mini-10G-2

DDR70-Mini-10G-2 recorder highlights

  • Small footprint​
  • 20Gbps total throughput​
  • 2 x 10GbE-links​
  • 30TB max storage​

DDR70c-Mini series highlights

  • Small footprint​
  • Up to 100Gbps total throughput
  • 10GbE, 25GbE and 40GbE-links​
  • 60TB max storage (optional)​
DDR70c-Mini series Ethernet recorder
Sustained 100% Ethernet capture, record, and playback

RDR7000-R series Ethernet recorders

RDR7000-R series

RDR7000-R series highlights

  • MIL-STD-810 & DO-160 (compliant)​
  • 100Gbps Total Throughput​
  • 10/25GbE, 40GbE, and 100GbE-Links​
  • 180TB Max Storage (Removable)​
  • STIG & AES256 encryption (Optional)

MIL-STD-810 & DO-160 (compliant)

(Baseline specifications. Ask for extended ranges or customized environmental options)

  • MIL-STD-810, Operational Temperature, Method 501,​
  • Procedure I/II: -15°C to +55°C, capable of -40°C to 71°C with select processors​
  • MIL-STD-810, Storage, Method 501, Procedure I/II: -55°C to +85°C​
  • MIL-STD-810, Humidity, Method 507, Procedure II: 240 hours with humidity kit​
  • MIL-STD-810, Altitude, Method 500: 12,500ft operation, 40,000ft transport​
  • MIL-STD-810, Vibration, Method 514, Procedure I: 4.63 GRMS, 5-2,000Hz, 60 min/axis with solid state drives + vibration kits​
  • MIL-S-901, Grade B​
  • MIL-S-901, Grade A: With solid state drives + shock kits​
Sustained 100% Ethernet capture, record, and playback

RDR70-Mini series Ethernet recorders

RDR70-Mini series highlights

  • MIL-STD-810 & DO-160 (compliant)​
  • 50Gbps Total Throughput​
  • 10/25GbE and 40GbE-Links​
  • 60TB Max Storage (removable)​
  • STIG & AES256 encryption (optional)

MIL-STD-810 & DO-160 (compliant)​

(Baseline specifications. Ask for extended ranges or customized environmental options)​

  • MIL-STD-810, Operational Temperature: -40°C to +60°C​
  • MIL-STD-810, Storage, Method 501, Procedure I/II: -40°C to +85°C​
  • MIL-STD-810, Altitude, Method 500: 12,500ft operation, 40,000ft transport​
  • MIL-STD-810, Vibration, Method 514, Procedure I: 5.5G, 10-2000Hz, 60 min/axis, 3 axes​
  • MIL-STD-810, Shock, Method 516, Procedures I/V: 20g, 11msec – functional shock; 40g, 11msec – crash hazard shock
RDR70-Mini series

why Daqscribe?

High-speed network recording for 100% packet capture and ADAS (Assured Data Availability Solution)
Platform speeds up to 100 Gbps (10, 25, 40, and 100GbE-link options)
Buffer or store Ethernet packet streams for real-time, near-real-time, and post data processing operations (e.g., DSP)
Turnkey network recording systems

our technology

fast single-platform Ethernet recorders

Daqscribe delivers the fastest single-chassis Ethernet recorders to the market.

Our recorders are designed to capture and record all Ethernet traffic from Layer-2 and are effectively data-content agnostic.

Explore our Ethernet recorder selection table for turnkey products that are capable of sustaining operation speeds up 200 Gbps.

packet capture from Layer-2

Protocol agnostic Ethernet recording solution

Our unique approach to Ethernet recording is to capture from Layer-2 through Layer-7 of the Ethernet stack.

Whether you’re running IPV4 versus IPV6 protocol implementations at Layer-3 (Network) or TCP versus UDP at Layer-4 (Transport), daqscribe delivers a flexible, protocol agnostic Ethernet recording solution.

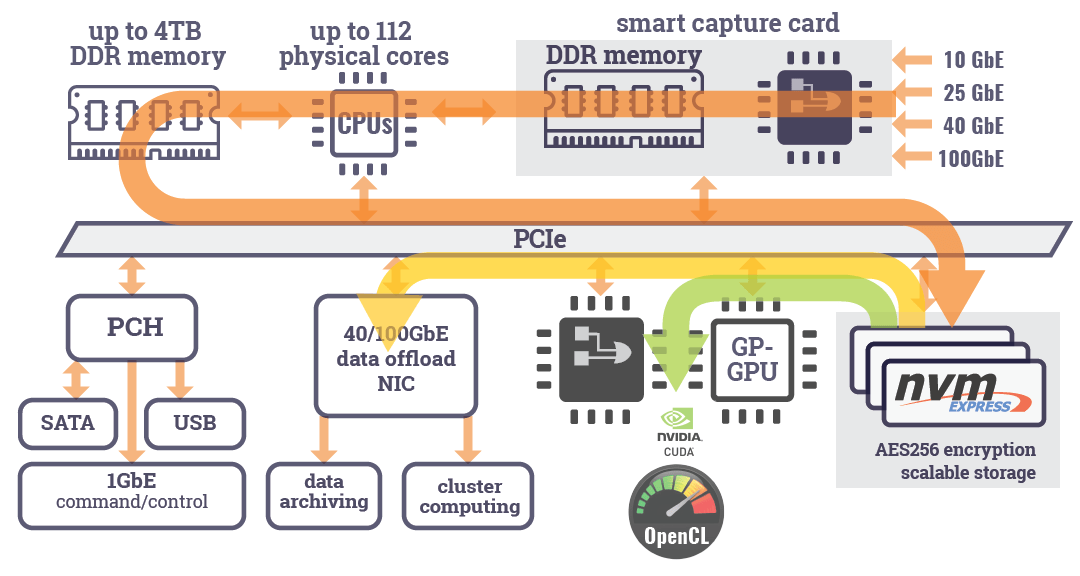

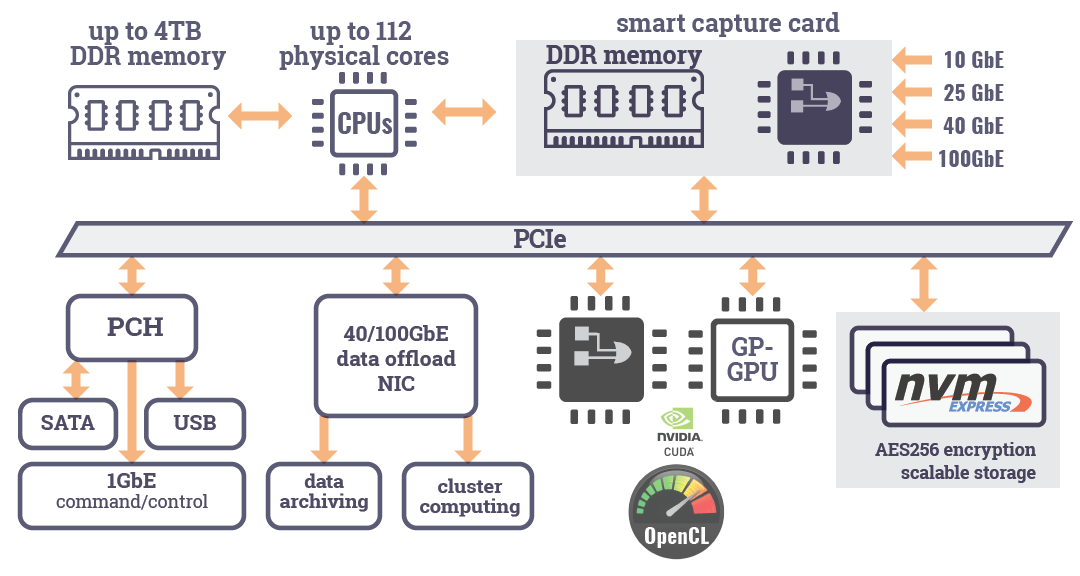

advanced network capture and record technology

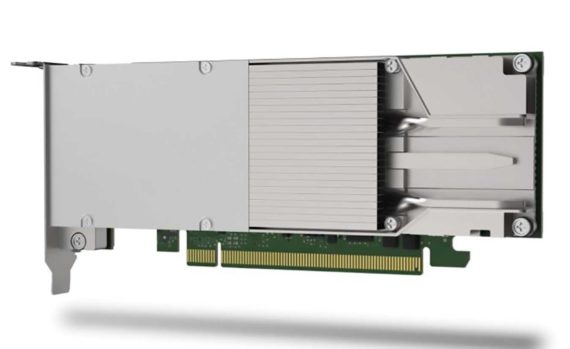

Intel Arria 10GX FPGA Card for Servers

Advanced digital signal processing (DSP) systems only perform as well as the data they reliably receive from their ‘sources’.

Make sure that your critical data is available to real-time, near-real-time, and post-processing systems by including one of our full-rate Ethernet recorder products.

Daqscribe recording platforms are offered as an Assured Data Availability Solution (ADAS) with a 100% packet capture recording promise.

This performance pledge is made possible through the innovative use of FPGA-based interfaces, our proprietary software IP, and enterprise-grade storage.

Ask us about supported links for your daqscribe Ethernet recorder application.

Including:

  • 10GbE via SFP+ link
  • 25GbE via SFP28 link
  • 40GbE via QSFP+ link
  • 100GbE via QSFP28 link

Advanced recorders for advanced applications

Wireless comms

wireless communications

Autonomous vehicle

Autonomous vehicle
  • LiDAR
  • IoT (i.e., MIPI® DSI)
  • Test & Measurement

Embedded Systems

FPGAs

Dev-to-deploy tool

Cable TV access

Cable TV access
  • R-PHY node
  • DOCSIS 3.1

Radar

Radar
  • phased array radar
  • synthetic aperture radar
  • 3D radar

100% packet capture

There are many critical network data applications where losing a data-sample or data-packet could be catastrophic.

These are bottom-line concerns that are typical to defense, aerospace, automotive and many other data-dependent applications.

A Daqscribe Ethernet recording system is one of the best Assured Data Availability Solutions (ADAS.)

Ethernet recording use-cases

  • FPGA+RFSoC for Sofware Defined Radio
  • *Digital RF/IF & Packet Radio
  • Fronthaul network (4G LTE CPRI and 5G-NR eCPRI)
  • Midhaul network (F1)
  • Backhaul network (Ethernet PHY)
  • RADAR
  • LiDAR
  • Mobile Edge Computing (MEC)
  • Radio astronomy
  • Photonics
  • High-frequency financial traffic
  • Ethernet-enabled sensors
  • High-speed digital media (i.e., augmented reality cameras)
  • Network stimulation/simulation
  • Network packet inspection

*Examples: USRP, VITA 49 radio transport (VRT), etc.

timing and synchronization

We offer optional GPS (PPS), CDMA (PPS), or IEEE 1588-2008 receiver-modules that enable inter-system synchronization with accurate packet time-stamping.

conversion-to-Ethernet options

Ask us about real-time conversion-to-Ethernet options; from Samtec FireFly™ to CPRI interfaces and protocols.

playback

Add our optional netPlay™ software-module for precise packet replay capabilities.

It’s a handy feature for stimulating and analyzing real-world data as it was originally captured from a real-time network.

Special recorders
